Function: It has 4 unlock options: Remote Control, M1 card, Pass code or Mechanical Key.

Max of 100 Codes, 800 Cards, 120 Remote Control users. Keypad illumination

Code users can change the code by their own, no need to know master code, the one who knows master code can easily add or delete normal users.

Pass word protect funtion, you can input many digits before and after your code to open the door, for example, your code is 666666, you can input 12352+666666+98658 to open the door, total length must be less than 20 digits

Double user function,when this function is enabled, you need to input two open lock ways to open the lock, for example, one code+ another code, one code+card, two cards,one code+one remote control, etc.

Handle Orientation for this lock is easily Reversible

The orientation of this lock is default for right hand. If you need left hand direction,simply follow the instrution in the package or ask video guide from seller to change the direction.

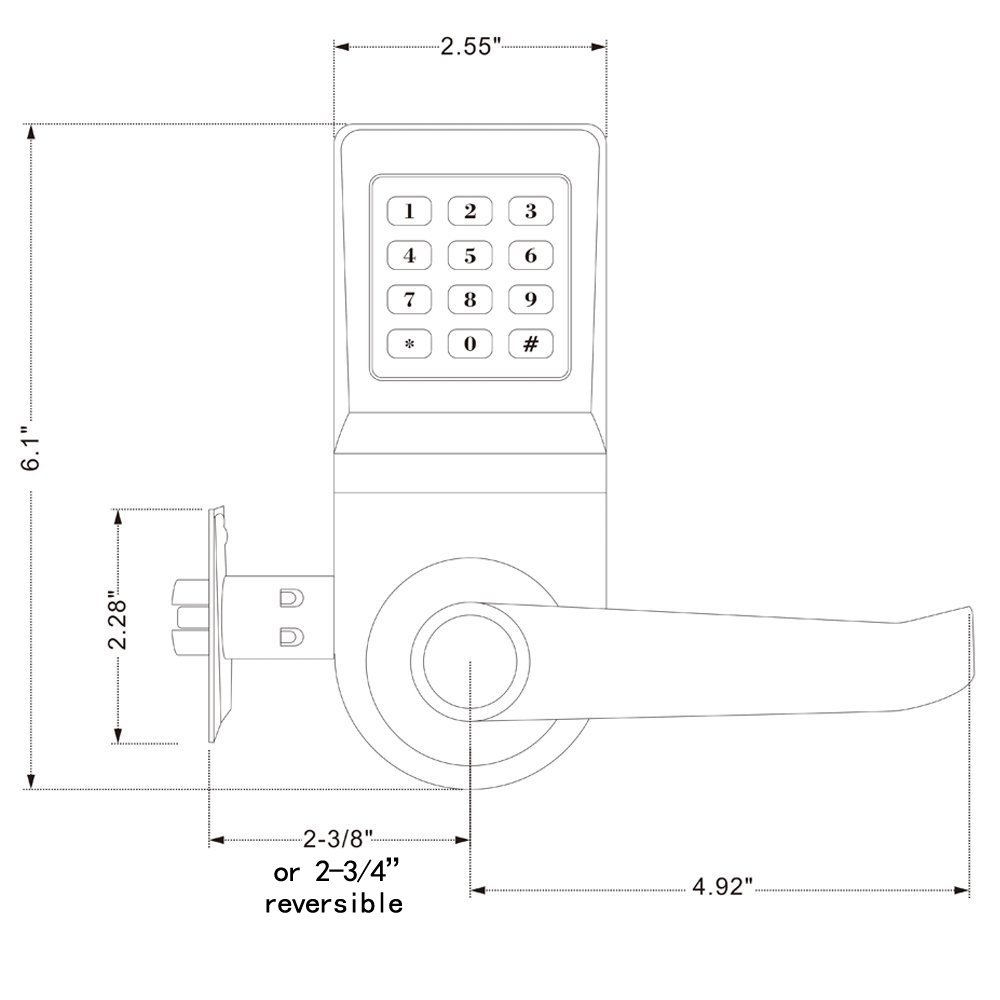

Standard Single Latch,backset for 2-3/8" and 2-3/4" both available in the packing

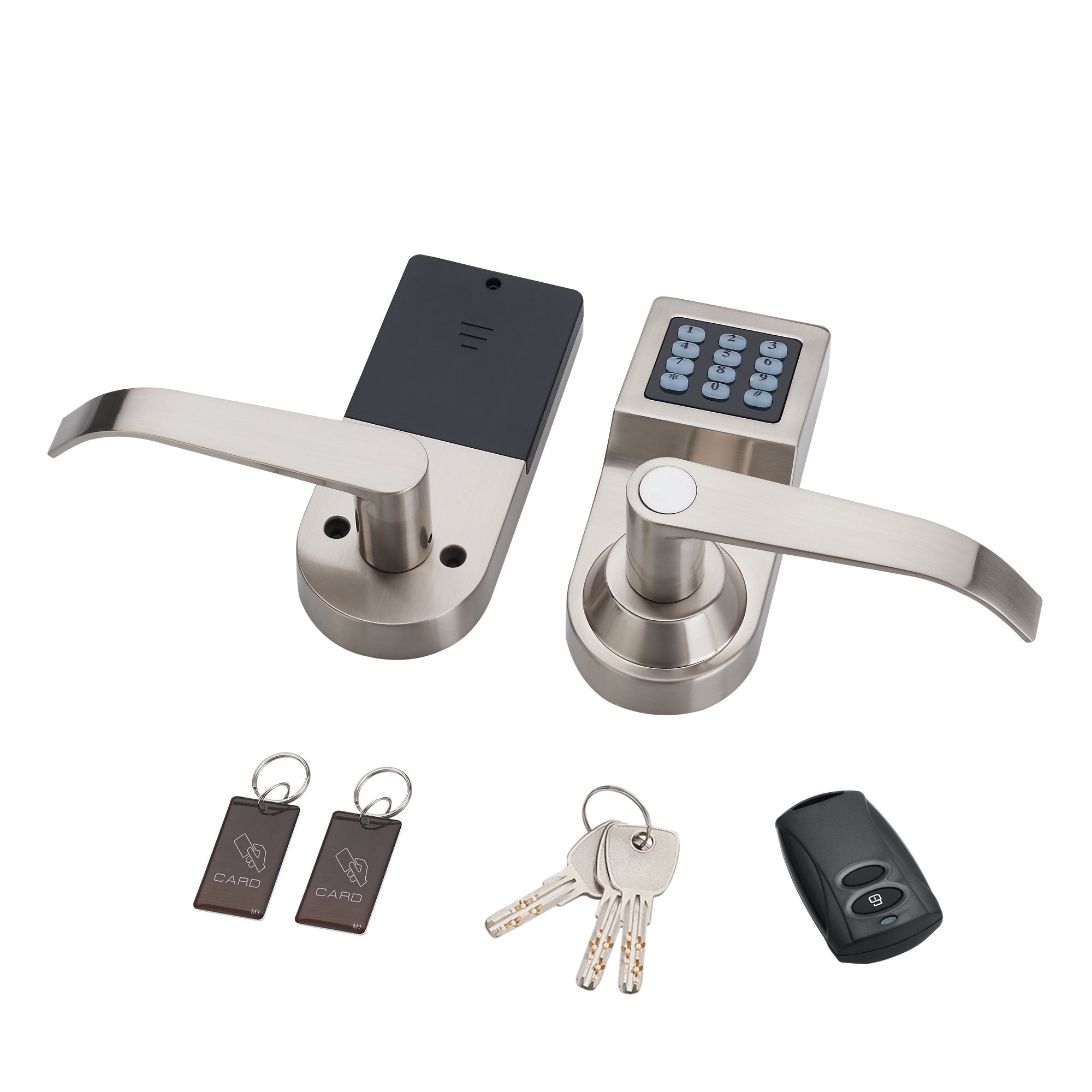

Package also includes 1 Remote Control(27A 12V battery required), 2 M1 Cards, and 3 Metal Keys and necessary fitting components.

Passage mode available

when enter into this mode, the lock won't automatically lock after open once, no need to input code every time for a busy door

Voice Navigation While Operating, make it much easier when program the lock

In case of dead battery

The lock will alarm when the battery voltage is lower than 4.8V, You can use keys to open the door(move away the key hole cover first). there is a plastic sucking dist to do this or you can use a magnet to move it away

Video Guide available

Manufacturer	HENYIN
Part Number	HENYIN6300
Package Dimensions	26.3 x 19.3 x 14.1 cm; 2 kg
Item model number	HENYIN6300
Style	card+remote
Finish	Polished
Material	Metal, Plastic
Shape	Rectangular
Number of Pieces	1, 3, 4
Special Features	Keypad Smart Lock, Passcode Unlock
Included Components	Key, Keypad, Remote Control
Batteries included?	No
Batteries Required?	Yes
Item Weight	2 kg

HENYIN Digital Door Lock,Unlock with M1 Card, Code and Key,Handle Direction Reversible (Card+Remote)
