Robust, Cost Effective and Compact PLC

Fast and Easy Programming
Drag and drop programming with Function block diagram (FBD)
Real-time monitoring/controlling of process data
Offline simulation Programming with standard USB cable
Programming over TCP Remote firmware upgrade
Axis control Blocks Library
PID and ON-OFF Control Blocks
Library Math Floating Points Blocks Library
View process data over web-server

Integrated IO

4 channel Digital Input, with optical isolation
4 channel Digital Output, with optical isolation
2 channel Analog Input, 0-20mA and 0-10V, Precision %1

Extpansion Capability:

Digital I/O up to 128 (64 DI, 64 DO) points.
Analog I/O up to 48 (16 AI, 16 RTD Input, 16 AQ) points.

Integrated Communication Ports:

Integrated GSM/GPRS module
1 port 100 Mbit Ethernet

1 port RS485
1 port, mini USB Type B

Communication Protocols:

MODBUS RTU Slave
MODBUS RTU Master
MODBUS TCP Slave
MODBUS TCP Master
MQTT Client

Special GSM Functions

Receiving and Parsing SMS Text messages
SMS composition and sending functions
Accepting DTMF calls and code parsing functions
DTMF call generation and code sending functions

Motion Control Functions:

4 channel Fast Counter input, 100 kHz
4 channel Pulse Width Modulation output (PWM), 100 kHz
4 channel Pulse Train output (PTO)

Manufacturer	Mikrodev
Part number	MP110EG
Item model number	MP100EG
Item Package Quantity	1
Batteries included?	Yes

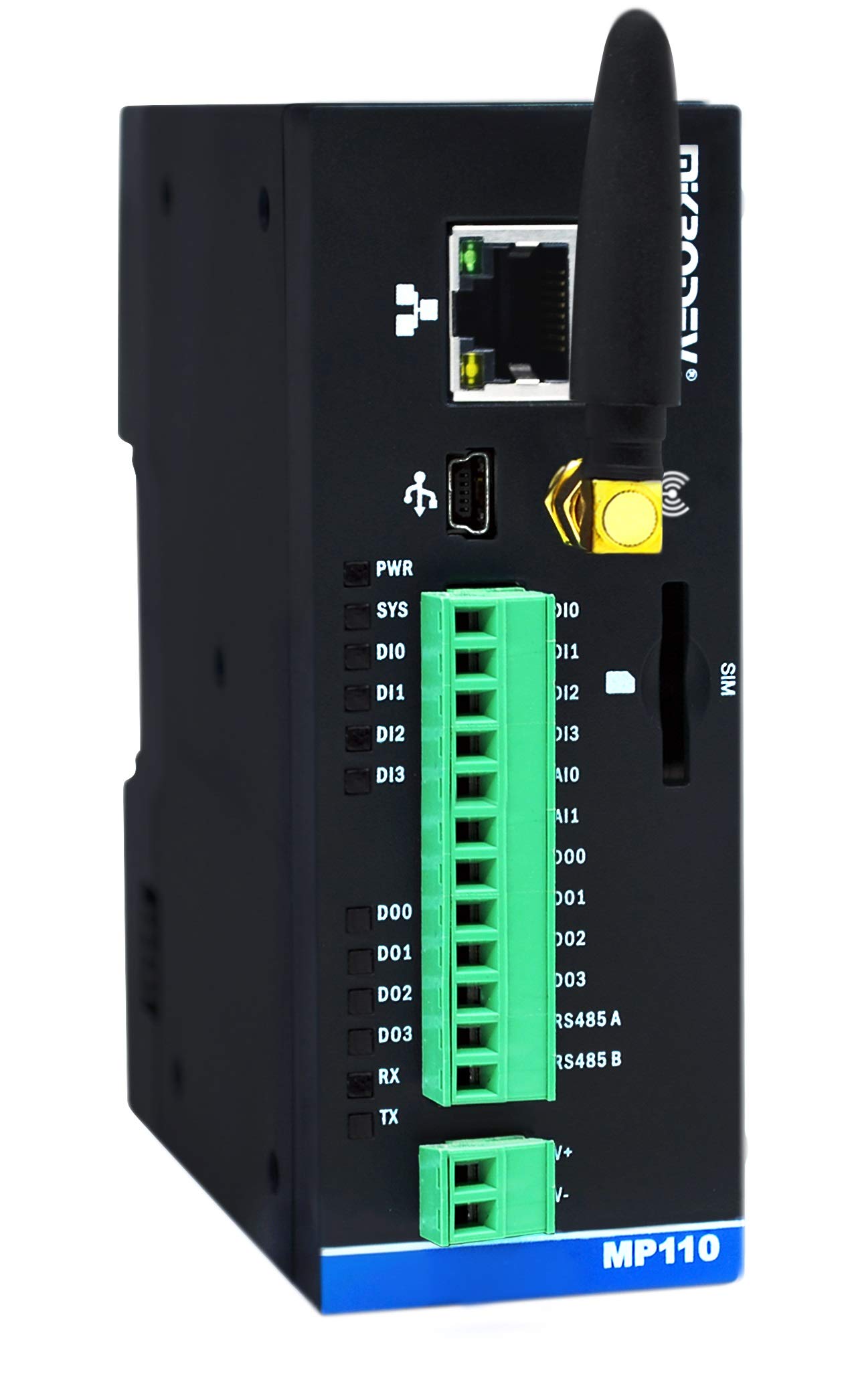

Programmable Logic Controller (PLC) - GSM/GPRS Integrated, 100 Mbit Ethernet. RS485, MQTT, MODBUS, 4 DI, 4 DO, 2 AI, IO Extension up to 196 points, Function Block Diagram- MP110_EG
