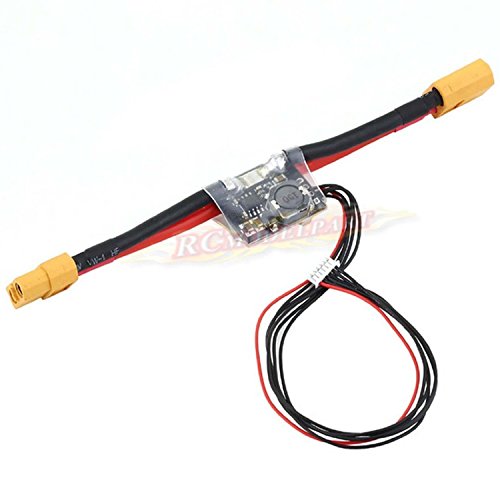

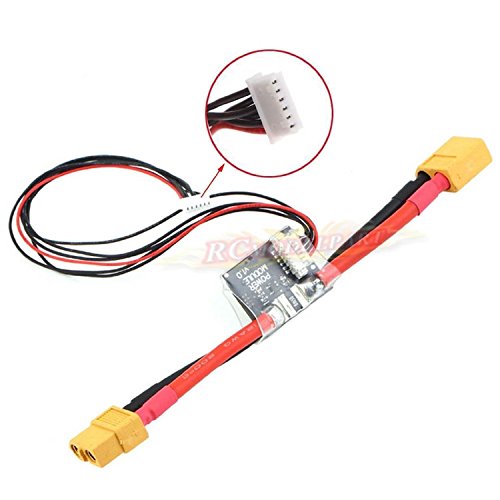

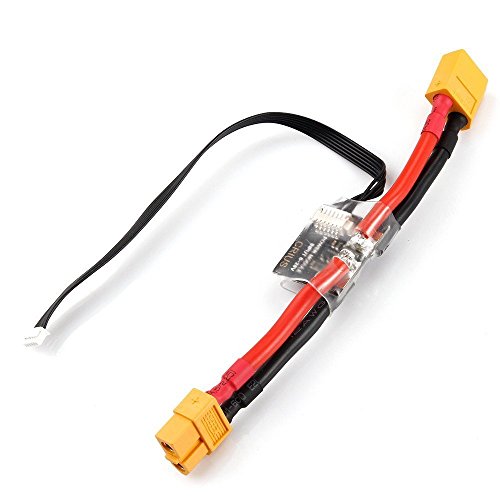

Yiguo APM Power Module V1.0 XT60 Plug (25 x 21 x 9mm) for APM2.8 APM2.6 APM Pixhawk Flight Controller
Produkt-ID: 50943710
Sichere Transaktion
Häufig zusammen gekauft
Beschreibung
Max input voltage: 28V
Max current sensing: 90A
The APM Power Module is a simple way of providing your APM FC with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Used to detect the battery voltage and the battery current, flight control board receives two signals, calculate the remaining battery power, estimate the remaining flight time.
In addition the module also comes with BEC function, you can output 5.3 DC, 3A maximum continuous current for the flight control board to provide a stable power supply. Another signal cable connectors are used in Japan original fittings, non-domestic joint, so APM flight control board and reliable connection between the power supply module.
Note: This is a new high-quality products. Due to different monitors, the computer shows a slightly different kind of colors. Description: The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry). It is not designed to power servos. Use your aircraft's own ESC/BEC for that. Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery. Features: Max input voltage: 30V Max current sensing: 90A Voltage and current measurement configured for 5V ADC Switching regulator outputs 5.3V and 3A max 6P molex cable plugs directly to APM/Arduflyer 2.5's 'PM' connector Size: 25 x 21 x 9mm Package including: 1pcs APM Power Module V1.0
