Angelelec DIY Open Source Sensors and Accessories, Winds From the Sensor Voltage Type 0-5V Arduino Compatible,Voltage Signal Output, Measuring instrument, Users Can Easily Read The Wind Speed Level
Produkt-ID: 27730363
Sichere Transaktion
Häufig zusammen gekauft
Beschreibung
Winds from the way the voltage signal output (0-5V), our specification and sample code, users can easily read the wind speed level.

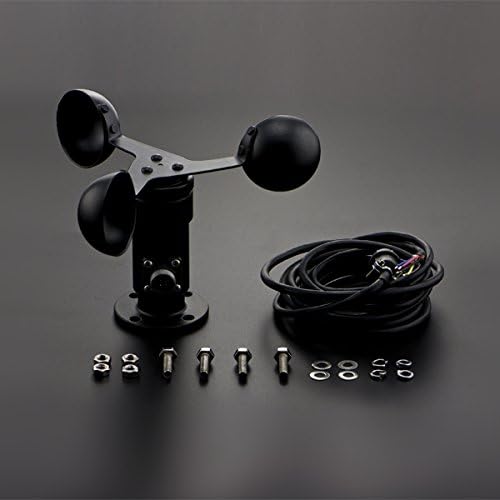

The cups anemometer wind speed sensor is a measuring instrument, the product by the housing, the cups and the circuit modules, integrated photoelectric conversion mechanism, industrial micro-processor, standard current generator, current drives.
Cups and wind sensor housing made of aluminum alloy material, the use of special precision die-casting process, dimensional tolerances very small surface accuracy is very high, the internal circuit protection have been processed, the entire sensor has a high strength, weather resistance, anti-corrosion and water resistance.
Cable connector plug for the military, has a good anti-corrosion, anti-corrosion performance, to ensure that the instrument long-term use, in conjunction with the use of internal air speed sensor imports bearing system manual to ensure the accuracy of the wind speed acquisition.
Circuit PCB using military grade A grade material, to ensure the quality stability and electrical performance parameters; electronic components are imported industrial chip, making the overall with a very reliable anti-electromagnetic interference capability, to ensure that the host at -20 ℃ ~ + 50 ℃ , can work within the normal humidity of 35% to 85% (non-condensing) range.
Specifications Model: JL-FS2 Sensor style: three cups of formula Signal output: 0 to 5V Supply voltage: DC 12V to 24V be co mmon Power: profiling MAX Less Than or Equal to 0.3W Start wind speed: 0.4 to 0.8m / s Resolution: 0.1m / s Effective wind speed measuring range: 0 to 30m / s System error: Plus/Minus 3% Transmission distance: more than 1000m Transmission media: cable transmission Connection: Threetowire Operating temperature: -40 Degree Celsius to 80 Degree Celsius Interface line sequence: VCC (Red); GND (Black); voltage signal (Yellow); current signal (Blue) Dimensions: see Fig. Weight: 1Kg Distribution list 1 * Anemometer Sensor 1 * Waterproof Air Plugs 1 * Standard 3 M Cable
